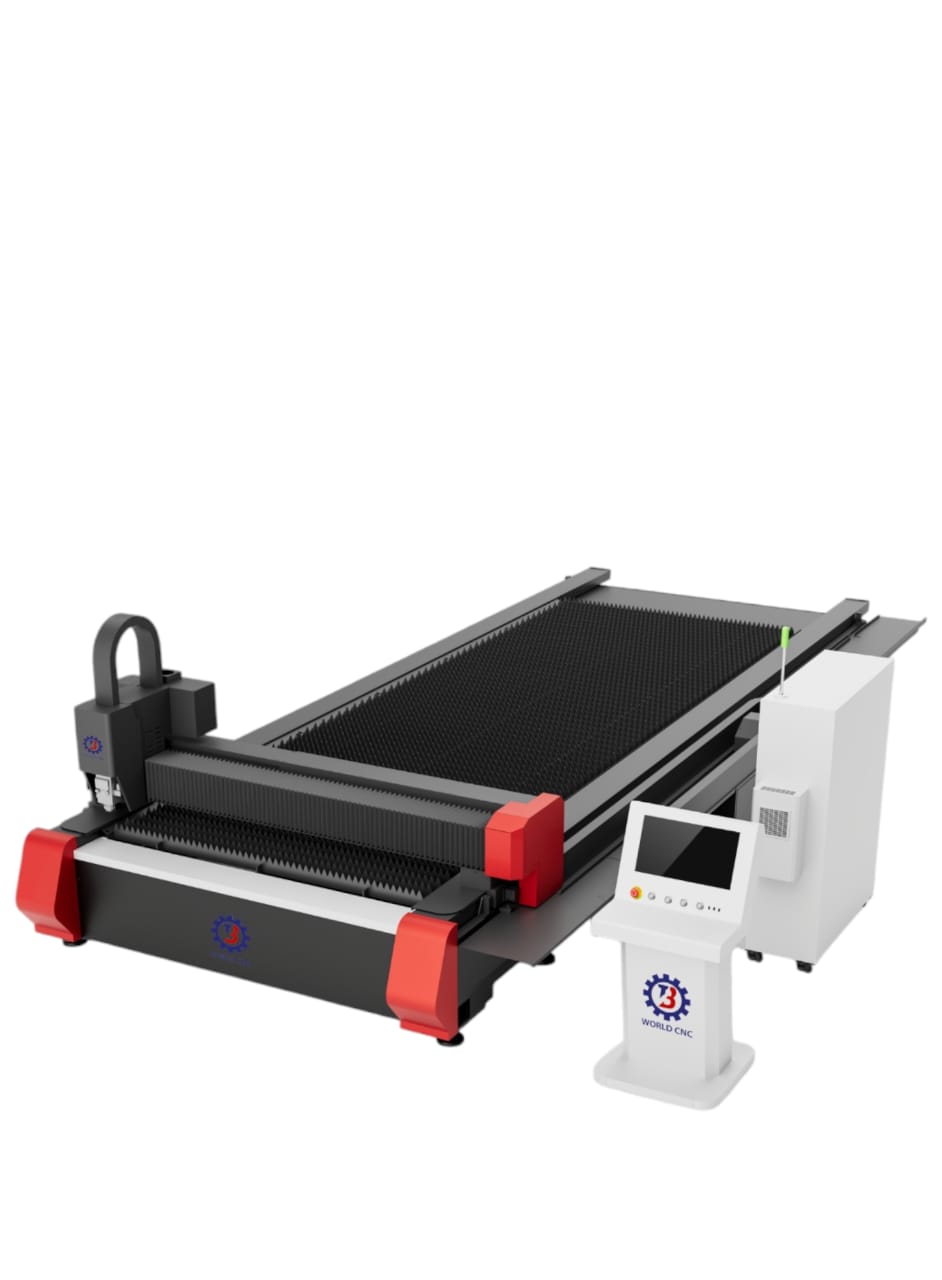

Single table laser cutting machine

 DPE-A3015-F2000W-R



First. Configuration and parameters



Serial Number

Name

 Brand Quantity Origin

1

Laser source

 Raycus 1 set China

2

Cutting head

 OSPRJ 1 set China

3

Precision rack

 JT 3 sets Taiwan, china

4

Reduction gear

 TECHMECH 3 sets Gemany

5

Servo motor and drive

 VEICHI 4 sets Taiwan, china
  6 Precision guide/screw SHAC 4 sets Taiwan, china
  7 Numerical control system Friendess 1 set china
  8 Electrical control Omron/Schneider/Airtac 1 set Japan/france/taiwan,china
  9 Chiller DP laser 1 set China
  10 Machine tool machinery DP laser 1 set China





Second. Technical Parameters



Serial Number

Performance index parameters



1

Laser power

 2000W

2

Processing format( lengthx width)

 3000mmX 1500mm

3

X-axis travel

 3020mm

4

Y-axis travel

 1520mm

5

Z-axis travel

 115mm
  6 X/Y axis positioning accuracy 0.02mm/m
  7 X/Y axis repeatable position accuracy ±0.02mm
  8 Maximum speed 110m/min
  9 Maximum acceleration 1.5G
  10  Machine Weight 900kg
  11 CNC system FRIENDESS Cypcut
  12 Electric phases 3
  13 Power supply rated voltage 380v
  14 Frequency 50Hz
  15 Total power supply protection class IP54

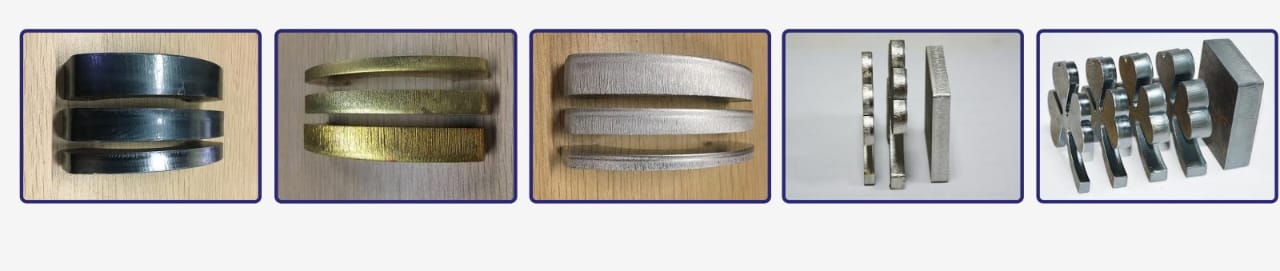

Photo Album

Single table laser cutting machine
