FC series fiber laser marking machine
FC-20-JL
First. Configuration and parameters
|
Serial Number |
Module |
Specification | Quantity |
|
1 |
Laser source |
JPT-LP | 1 set |
|
2 |
Scanning vibroscope |
Scan quick3<=1064nm | 1 set |
|
3 |
Lens |
110mmX110mm | 1 set |
|
4 |
Control software |
DPEzCAD/ DP laser | 1 set |
|
5 |
Computer |
Industrial control 13/21.5ft | 3 sets |
| 6 | Control cabinet | DP-FC reinforced support sheet metal cabinet 800mm*650mm( standard led lighing device) | 5 sets |
| 7 | Lifting mechanism | Type 130 lifting, travel s=550mm, manual focusing | 1 set |
Second. Technical Parameters
|
Serial Number |
Model |
Describe |
|
1 |
Central wavelength |
1064nm |
|
2 |
Laser power |
20W |
|
3 |
Frequency |
1-600KHz |
|
4 |
Beam Quality |
M2<1.5 |
|
5 |
Pulse width |
200ns |
| 6 | Spot diameter | 7±0.5mm |
| 7 | Security level | Class IV |
| 8 | Marking speed | <=12000mm(the actual marking speed depends on the material) |
| 9 | Repeatable Accuracy | ±0.001mm |
| 10 | Minimum character | 0.15mm |
| 11 | Minimum marking line width | 32um |
| 12 | Marking range | 110X110mm(optional 70mm/150mm/180mm/220mm) |

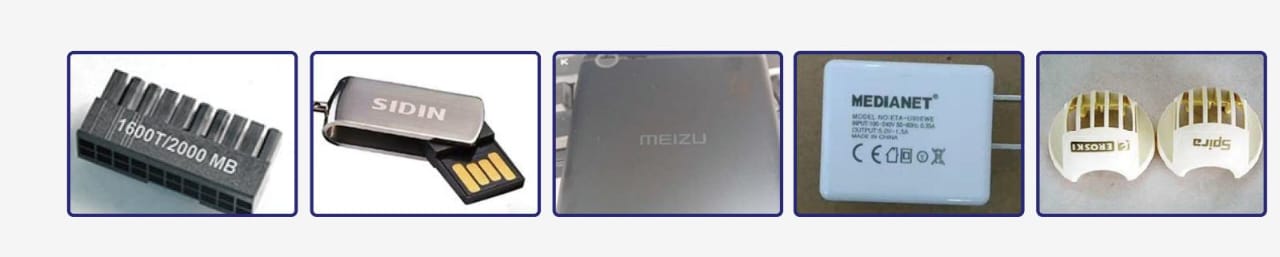

Photo Album
