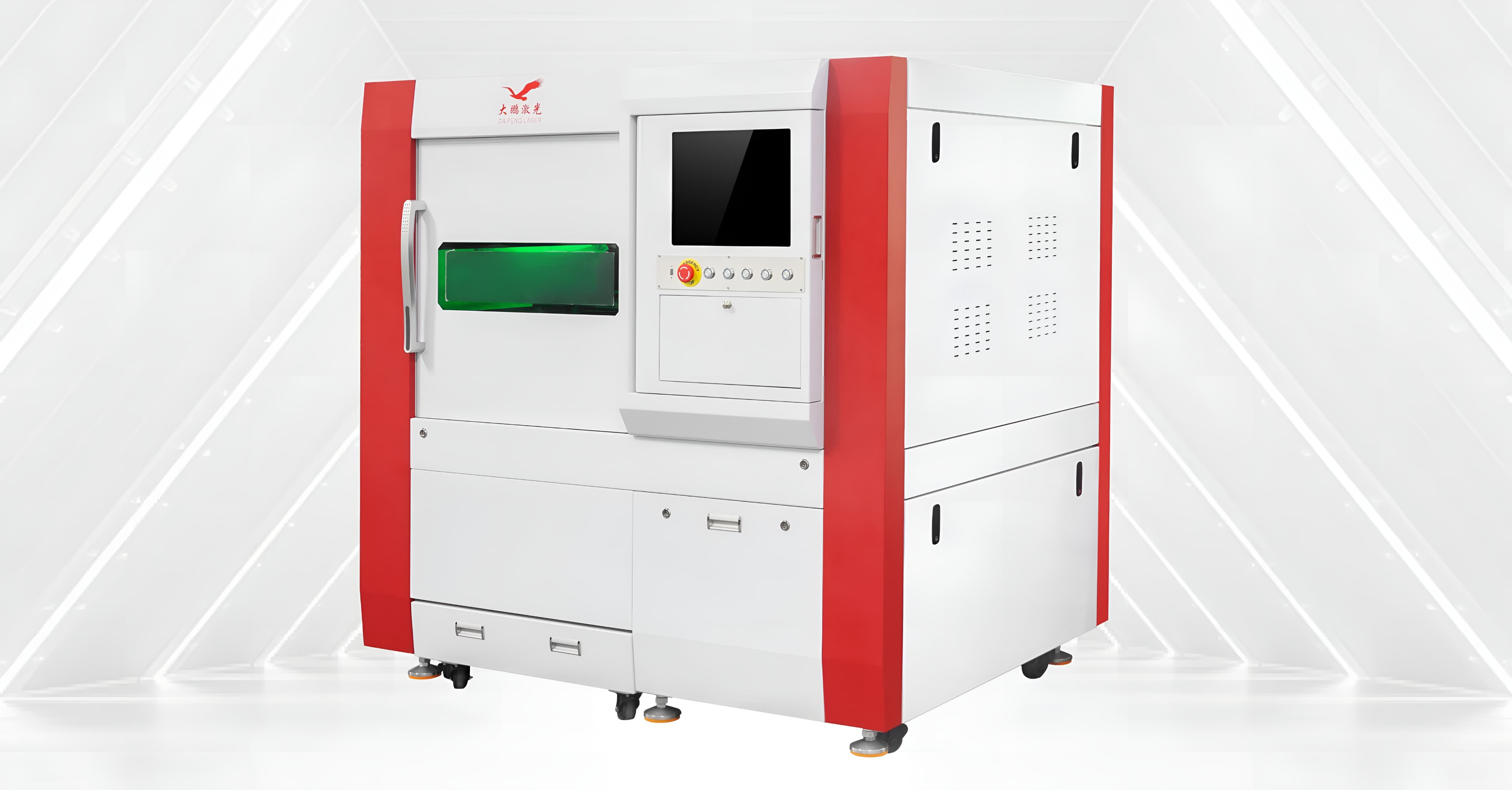

small format fiber laser cutting machine
DPE-0606-F2000W-R
First. Configuration and parameters
|
Serial Number |
Name |
Brand | Quantity | Origin |
|
1 |
Laser source |
Raycus | 1 set | China |
|
2 |
Cutting head |
OSPRI | 1 set | China |
|
3 |
Servo |
DELTA | 4 sets | Taiwan,china |
|
4 |
Precision guide/screw |
JT | 4 sets | Taiwan,china |
|
5 |
Control system |
Friendess | 1 set | China |
| 6 | Chiller | Dapeng laser | 1 set | china |
| 7 | Machine tool machinery | Dapeng laser | 1 set | china |
| 8 | Marble platform | Dapeng laser | 1 set | china |
Second. Technical Parameters
|
Serial Number |
Performance index parameters |
|
|
1 |
Laser power |
2000W |
|
2 |
Processing format( lengthXwidth) |
600mmX 600mm |
|
3 |
X-axis travel |
600mm |
|
4 |
Y-axis travel |
600mm |
|
5 |
Z-axis travel |
100mm |
| 6 | Repeatability | ≤30um |
| 7 | Platfrorm repeat positioning accuracy |
≤15um |
| 8 | X, Y single axis maximum speed | 1000mm/s |
| 9 | Maximum acceleration | 1G |
| 10 | CNC system | Friendess |
| 11 | Electric phases | 3 |
| 12 | Power supply rated voltage | 380V |
| 13 | Frequency | 50Hz |
| 14 | Total power supply protection class | IP54 |

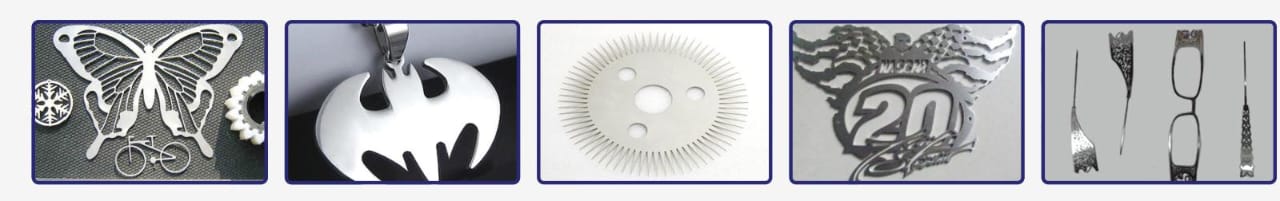

Photo Album
