Five-axis high-speed laser tube cutting machine
DPE-D90A-F2000W-M
First. Configuration and parameters
|
Serial Number |
Name |
Brand | Quantity | Origin |
|
1 |
Fiber Laser source |
Raycus 1500w | 1 set | China |
|
2 |
Fiber laser Cutting head |
OSPRJ | 1 set | China |
|
3 |
Control system |
Friendess | 1 set | Taiwan, china |
|
4 |
Rack |
JT | 1 set | Gemany |
|
5 |
Guide rail |
SHAC | 3 sets | France |
| 6 | Servo motor and drive | VEICHI | 5 sets | Taiwan,china |
| 7 | Reduction gear | TECHMECH | 1 set | china |
| 8 | Pneumatic assembly | China | Several | china |
| 9 | Water chilling unit | Dapeng laser | 1 set | Gemany |
| 10 | Automatic feeding machine | Dapeng laser | 1 set | Japan/Gemany/China |
Second. Technical Parameters
|
Serial Number |
Model |
Describe |
|
1 |
Cutting tube length |
Infinite length |
|
2 |
Cutting tube diameter |
Φ6-Φ86 |
|
3 |
Tailing |
≤50MM |
|
4 |
X-axis travel |
0-1300MM |
|
5 |
Y-axis travel |
±50MM |
| 6 | Z- axis travel | 0-100MM |
| 7 | Cutting precision |
±0.05MM |
| 8 | Position accuracy | ±0.1mm |
| 9 | Material pulling accuracy | ±0.1MM(SINGLE TIME) |
| 10 | Cutting width | 0.1-0.2MM |
| 11 | Repeated position accuracy | ±0.03MM |
| 12 | Acceleration | 1.5G |

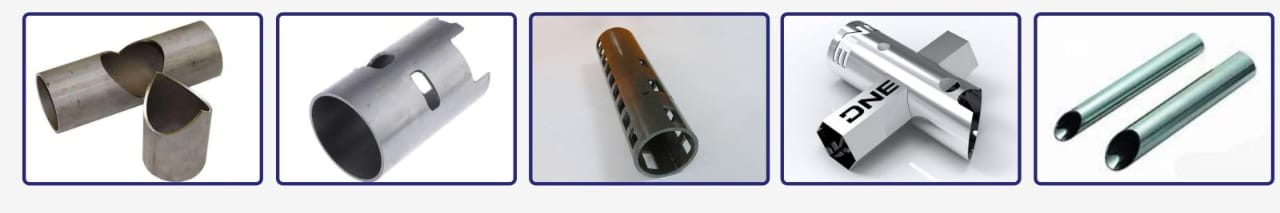

Photo Album
