hand-held fiber laser welding machine

 DPH-1500-SCBD-A-DP

First. Configuration and parameters



Serial Number

Name

 Brand Quantity

1

Cabinet

 Dp laser 1 set

2

Laser source

 Dp laser 1 set

3

Welding Head

 Dp laser 1 set

4

Control system

 Dp laser 1 set

5

Wire feeder

 Dp laser 1 set





Second. Technical Parameters



Serial Number

Model

 Describe Remarks

1

The central wavelength

 1060nm-1080nm

2

Laser power

 1500w

3

Fiber length

 10m Outside 8 meters

4

The weight of the welding head

 0.7kg

5

cooling method

 Water cooling
  6 Operating environment 10-35°c, Relative humidity 30%<=RH<=85%, NO Condensation
  7 Electric power requirement 220V±5%, 50Hz
  8 The overall power 5Kw
  9 External size of the whole machine 790*376*623 Air-cooled all-in-one machine
  10 Weight 67Kg
  11 Security classification Class IV
  12 Total power supply protection level IP54

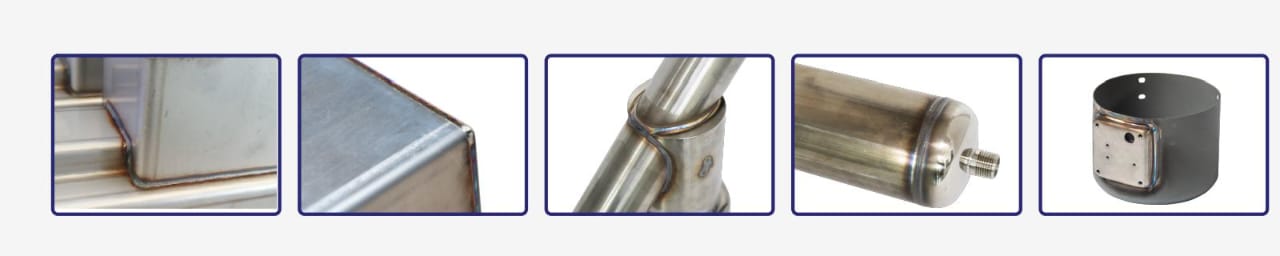

Photo Album

hand-held fiber laser welding machine
