Three-chuck professional pipe cutting machine

   DPE-L6060-K22-F3000W-M



First. Configuration and parameters



Serial Number

Name

 Brand Quantity Origin

1

Laser source

 MAX 1 set China

2

Cutting head

 WSX 1 set China

3

Precision rack

 JT 2 sets Taiwan, china

4

Reduction gear

 TECHMECH 12 sets Gemany

5

Servo motor and drive

 DELTA 13 sets France
  6 Precision guide/screw SHAC 5 sets Taiwan,china
  7 Numerical control system Friendess 1 set china
  8 Electrical control Friendess 1 set china
  9 Chiller Rexroth 1 set Gemany
  10 Machine tool machinery SMC/Rexroth/AirTAC 1 set Japan/Gemany/China
  11 Electrical control Omron/Schneider 1 set Japan/france
  12 Chiller DP laser 1 set China
  13 Machine tool machinery DP laser 1 set China
  14 Chuck Dapeng design precision dual chuck 1 set China





Second. Technical Parameters



Serial Number

Performance index parameters



1

Laser power

 6000W

2

Y1-axis travel

 3000mmX 1500mm

3

Y2-axis travel

 1520mm

4

Y3-axis travel

 3050mm

5

X-axis travel

 275mm
  6 Z- axis travel 0.03mm/m
  7 Processing pipe range

Stroke 6000mm Bearing capacity 50kg meter round tube diameter 10-220mm square tube diameter 10-150mm

i-beam 160X80mm

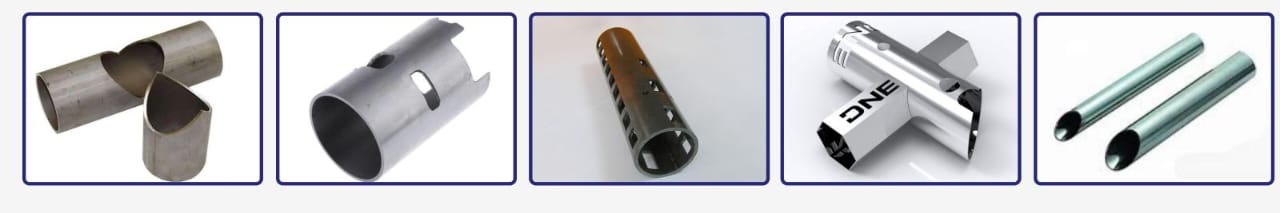

Photo Album

Three-chuck professional pipe cutting machine
